After you open the PLAYSTATION 3 program, the home page is displayed.
Note: Using Wireless Controller
Directional buttons (Left, Right, Up, Down): Used to select on-screen categories/items.
X button: Confirms the selected item.
O button: Cancels an operation.
PS button: Displays the home menu and turns the system on/off
Note: Using Wireless Controller
Directional buttons (Left, Right, Up, Down): Used to select on-screen categories/items.
X button: Confirms the selected item.
O button: Cancels an operation.
PS button: Displays the home menu and turns the system on/off

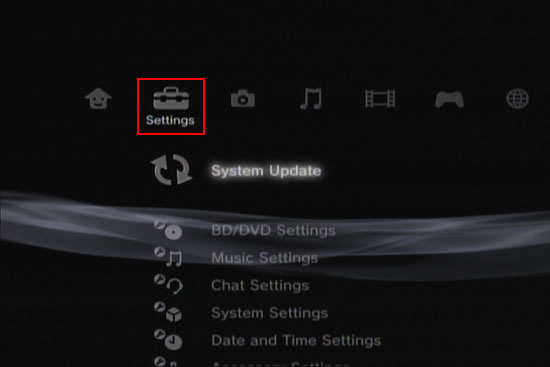

Use the Left button to select the Settings icon from the top menu
Select Network Settings under the Settings section in the home menu, and then press the X button on the Wireless Controller
Select Internet Connection Settings and then press the X button to continue
Select Yes when a confirmation screen is displayed stating that you will be disconnected from the Internet.
Press the X button to continue
Press the X button to continue
Adjust each item as necessary for the particular network environment in use. The items displayed will vary depending on the settings you select.

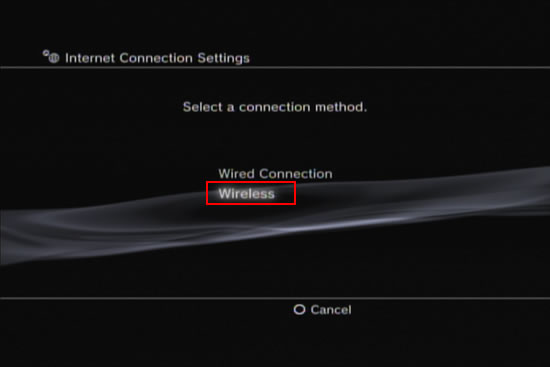

Select Wireless and then press the Right button on the Wireless Controller
Select Wireless and then press the Right button on the Wireless Controller
Scan: Scan for a nearby access point.
Select this setting when you do not know the SSID of the access point. The system will detect nearby access points and display information on the SSID and security settings.
Enter Manually: Specify the access point by entering its SSID manually using a keyboard.
Select this setting when you know the SSID.
Automatic: Use the automatic setting feature of the access point.
This setting is available only in regions where PS3T systems that support this feature are sold. Select this setting when using an access point that supports automatic setup. Follow the on-screen instructions.

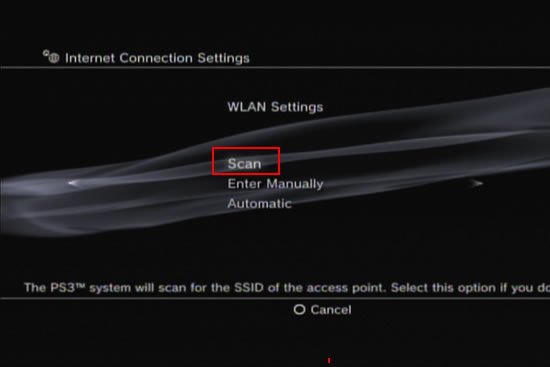

Select Scan and then press the Right button
Select this setting when you do not know the SSID of the access point. The system will detect nearby access points and display information on the SSID and security settings.
Enter Manually: Specify the access point by entering its SSID manually using a keyboard.
Select this setting when you know the SSID.
Automatic: Use the automatic setting feature of the access point.
This setting is available only in regions where PS3T systems that support this feature are sold. Select this setting when using an access point that supports automatic setup. Follow the on-screen instructions.
Select Scan and then press the Right button

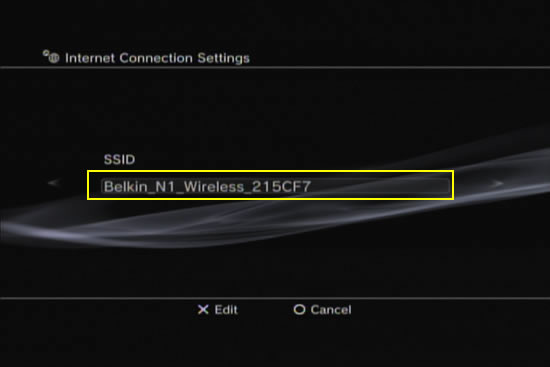

An access point within the range of the system is displayed.
Press the Right button to continue
Press the Right button to continue
The types of security methods supported vary depending on the access point. Contact the person who sets up or maintains the access point for assistance.

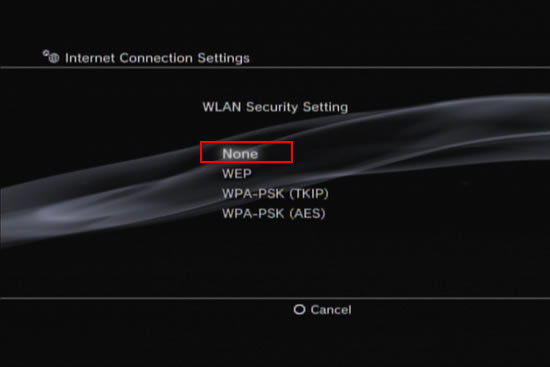

Select the security settings as necessary. By default, None has been selected.
Press the Right button to continue
Select the security settings as necessary. By default, None has been selected.
Press the Right button to continue
Adjust the network settings to match your network environment.
Easy: Automatically set basic settings.
Custom: Manually enter detailed information for settings such as the following:
Easy: Automatically set basic settings.
Custom: Manually enter detailed information for settings such as the following:
- Ethernet Operation Mode
- IP Address Setting
- DNS Setting
- MTU
- Proxy Server
For details, refer to the information provided by your ISP or the instructions supplied with the network device.
Select Easy and then press the Right button
Select Easy and then press the Right button

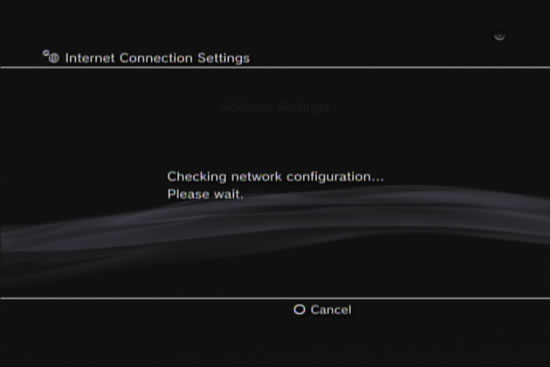

The network configuration is in progress
Automatic: Use the IP address allocated by the DHCP server. You can enter the DHCP server host name on the next screen.
Manual: Set the IP address manually.
You can enter values for the IP address, subnet mask, default router and primary and secondary DNS on the next screen.
PPPoE: Connect to the Internet using PPPoE.
You can enter your user ID and password on the next screen.
Select PPPoE and then press the Right button to continue
Manual: Set the IP address manually.
You can enter values for the IP address, subnet mask, default router and primary and secondary DNS on the next screen.
PPPoE: Connect to the Internet using PPPoE.
You can enter your user ID and password on the next screen.
Select PPPoE and then press the Right button to continue

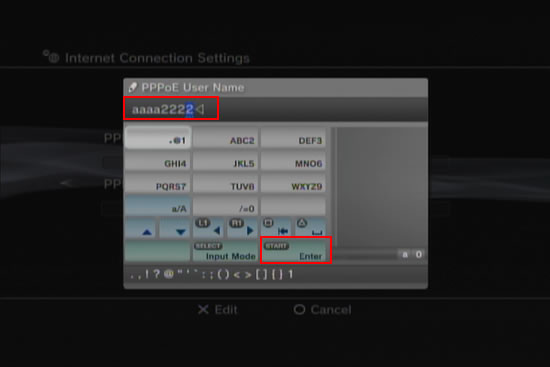

Select the PPPoE User Name textbox and then press the X button
Enter the PPPoE User Name and then press the Start button to finish

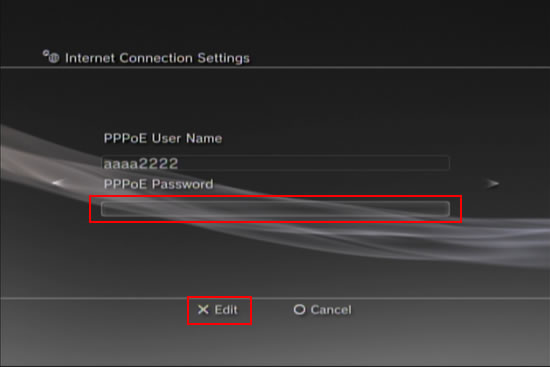

Select the PPPoE Password textbox and then press the X button

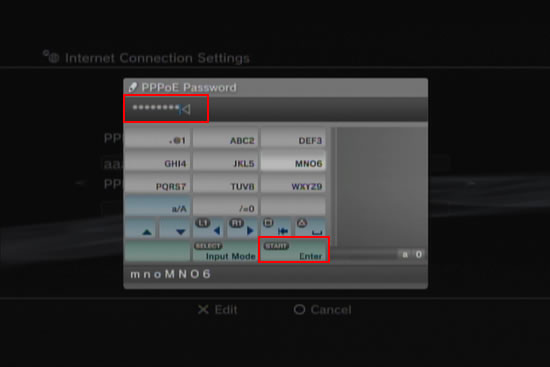

Enter the PPPoE Password and then press the Start button to finish

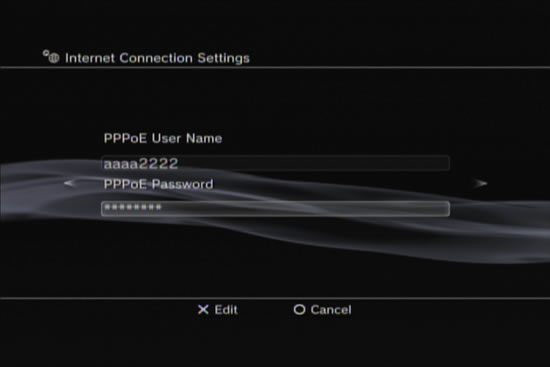

After you have entered the PPPoE Password and PPPoE User Name, press the Right button to continue
Set the DNS server
Automatic: Automatically acquire the DNS server address.
Manual: Manually enter the DNS server address.
Select Automatic and then press the Right button to continue
Automatic: Automatically acquire the DNS server address.
Manual: Manually enter the DNS server address.
Select Automatic and then press the Right button to continue
Configure the MTU value used when transmitting data.
Automatic: Automatically set the MTU value.
Manual: Specify the maximum size of data packets (in bytes) that can be sent in one transmission.
Select Automatic and then press the Right button to continue
Automatic: Automatically set the MTU value.
Manual: Specify the maximum size of data packets (in bytes) that can be sent in one transmission.
Select Automatic and then press the Right button to continue

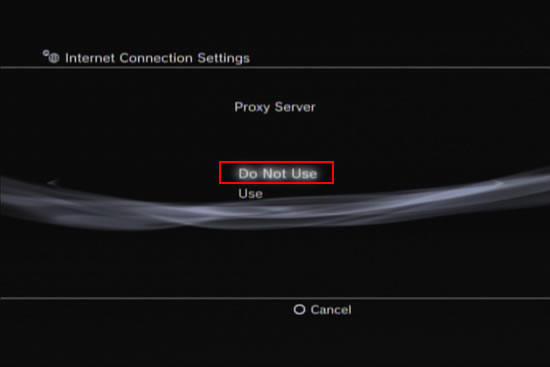

Set the proxy server to be used.
Do Not Use: Do not use a proxy server.
Use: Use a proxy server.
You can enter the proxy server address and port number on the next screen.
Select Do Not Use and then press the Right button to continue
Do Not Use: Do not use a proxy server.
Use: Use a proxy server.
You can enter the proxy server address and port number on the next screen.
Select Do Not Use and then press the Right button to continue

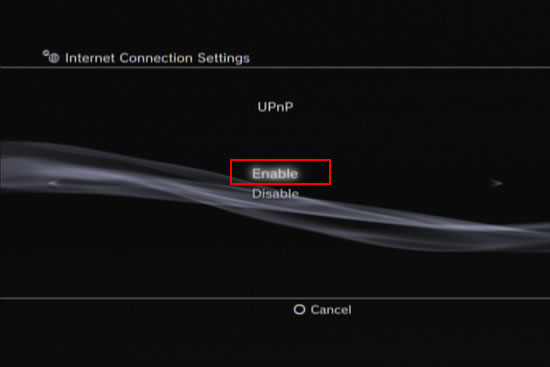

Set to enable or disable UPnP (Universal Plug and Play).
Enable: Enable UPnP.
Disable: Disable UPnP.
Note: If set to [Disable], communication with others may be restricted when using the voice / video chat feature or communication features of games.
Select Enable and then press the Right button to continue
Enable: Enable UPnP.
Disable: Disable UPnP.
Note: If set to [Disable], communication with others may be restricted when using the voice / video chat feature or communication features of games.
Select Enable and then press the Right button to continue
Press the X button to save settings
This concludes the PPPoE walk through
